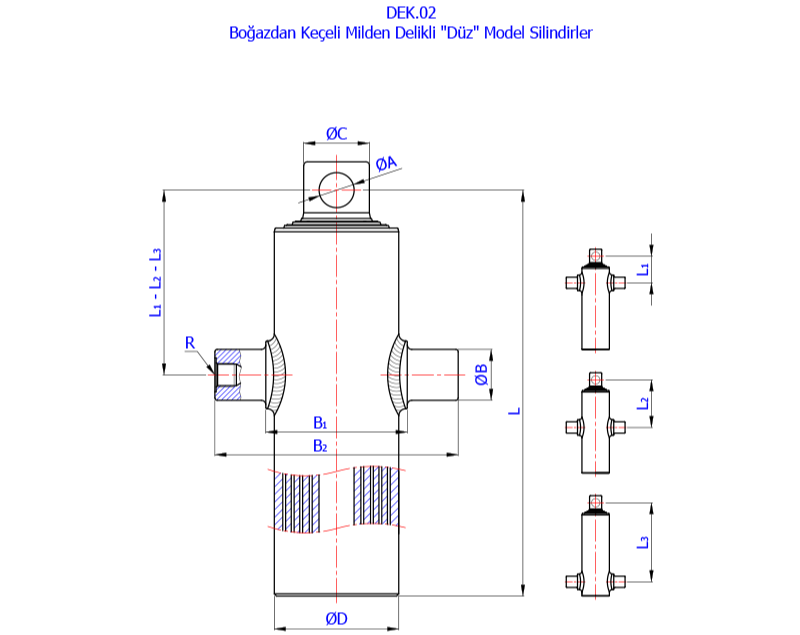

Boğazdan Keçeli Milden Delikli (Düz Seri)
Kapasite Tablosu
| Kod |
Kademe |
Strok (Ls) (mm) |
L (mm) |
L1 (mm) |
L2 (mm) |
L3 (mm) |
ØA |
ØB |
B1 |
B2 |
ØC |
ØD |
R |
Yağ Hacmi (lt) |
Ağırlık (kg) |
| DEK.02.80.0390 | 2 | 390 | 323 | 100 | | 283 | 26 | 25 | 98 | 256 | 42 | 80 | 16x1,5 | 1 | 10,4 |
| DEK.02.80.0500 | 2 | 500 | 378 | 100 | | 338 | 26 | 25 | 98 | 256 | 42 | 80 | 16x1,5 | 1,3 | 12,3 |
| DEK.02.80.0620 | 2 | 620 | 439 | 107 | | 399 | 26 | 40 | 100 | 180 | 42 | 80 | 1/2" | 1,6 | 12,1 |
| DEK.02.80.0700 | 2 | 700 | 479 | 100 | | 439 | 26 | 40 | 100 | 180 | 42 | 80 | 1/2" | 2 | 16,3 |
| DEK.02.80.0820 | 2 | 820 | 539 | 107 | | 499 | 26 | 40 | 100 | 180 | 42 | 80 | 1/2" | 2,1 | 18,2 |
| DEK.02.95.0595 | 2 | 595 | 436 | 107 | | 396 | 31 | 45 | 115 | 205 | 57 | 95 | 1/2" | 2,5 | 23 |
| DEK.02.95.0795 | 2 | 795 | 536 | 107 | | 496 | 26 | 45 | 115 | 205 | 57 | 95 | 1/2" | 3,3 | 26 |
| DEK.02.95.0570 | 3 | 570 | 323 | 110 | | 283 | 26 | 45 | 115 | 205 | 42 | 95 | 1/2" | 1,9 | 15,4 |
| DEK.02.95.0910 | 3 | 910 | 439 | 110 | | 399 | 26 | 40 | 115 | 205 | 42 | 95 | 1/2" | 3,1 | 20,8 |
| DEK.02.105.0950 | 2 | 950 | 634 | 107 | 197 | 589 | 36 | 45 | 128 | 218 | 67 | 105 | 1/2" | 5,1 | 40 |
| DEK.02.105.0875 | 3 | 875 | 436 | 110 | 200 | 391 | 31 | 40 | 128 | 218 | 57 | 105 | 1/2" | 4,5 | 26 |
| DEK.02.105.1060 | 3 | 1060 | 499 | 110 | 200 | 454 | 36 | 45 | 128 | 218 | 57 | 105 | 1/2" | 5,5 | 30,1 |
| DEK.02.105.1190 | 4 | 1190 | 439 | 113 | 203 | 394 | 36 | 45 | 128 | 218 | 42 | 105 | 1/2" | 5 | 25 |
| DEK.02.128.0930 | 2 | 930 | 629 | 107 | 194 | 584 | 36 | 45 | 148 | 238 | 87 | 128 | 1/2" | 7,8 | 41 |
| DEK.02.128.0895 | 3 | 895 | 458 | 110 | 200 | 413 | 36 | 45 | 148 | 238 | 65 | 128 | 1/2" | 6,2 | 37 |
| DEK.02.128.1160 | 3 | 1160 | 547 | 110 | 200 | 502 | | | | | | | | |
